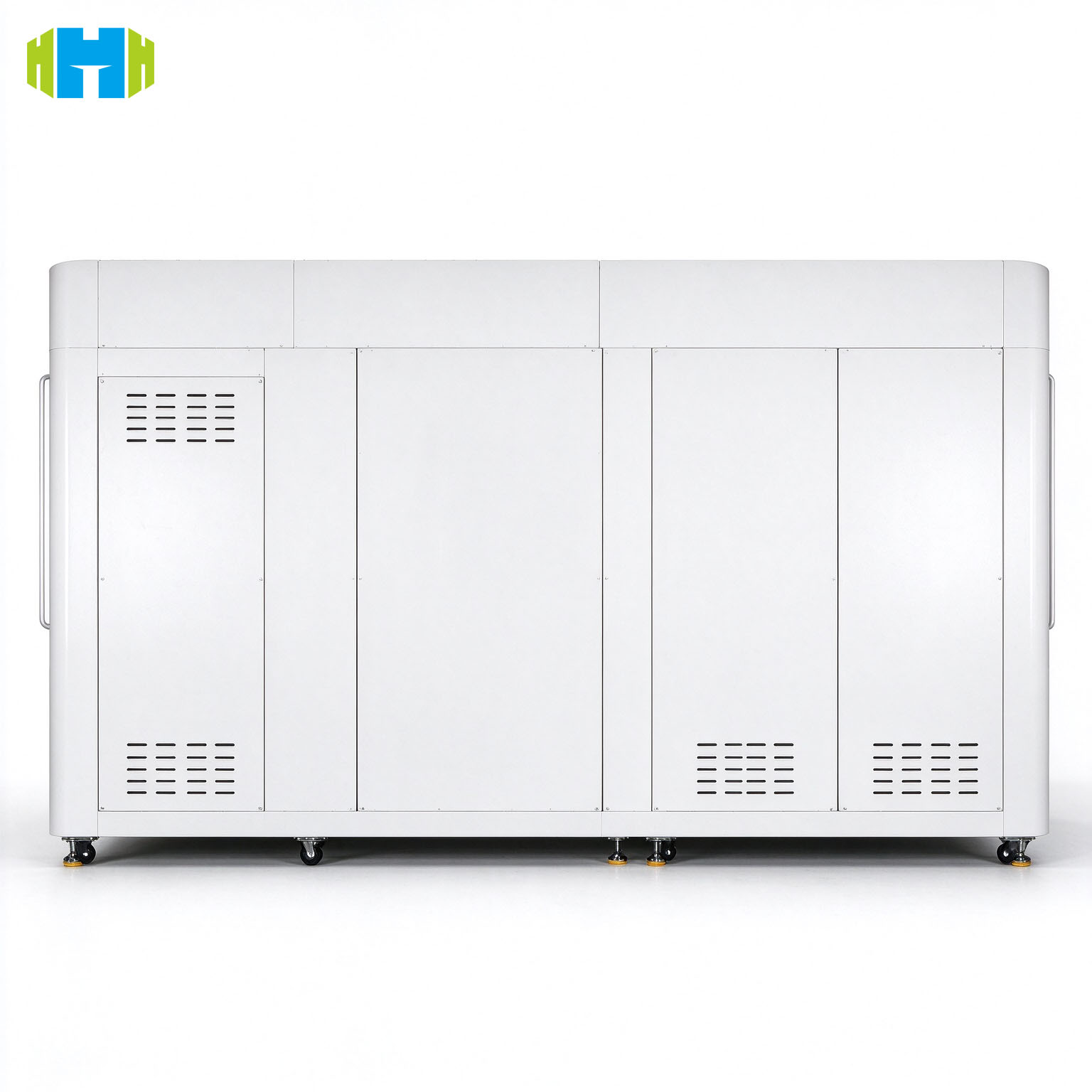

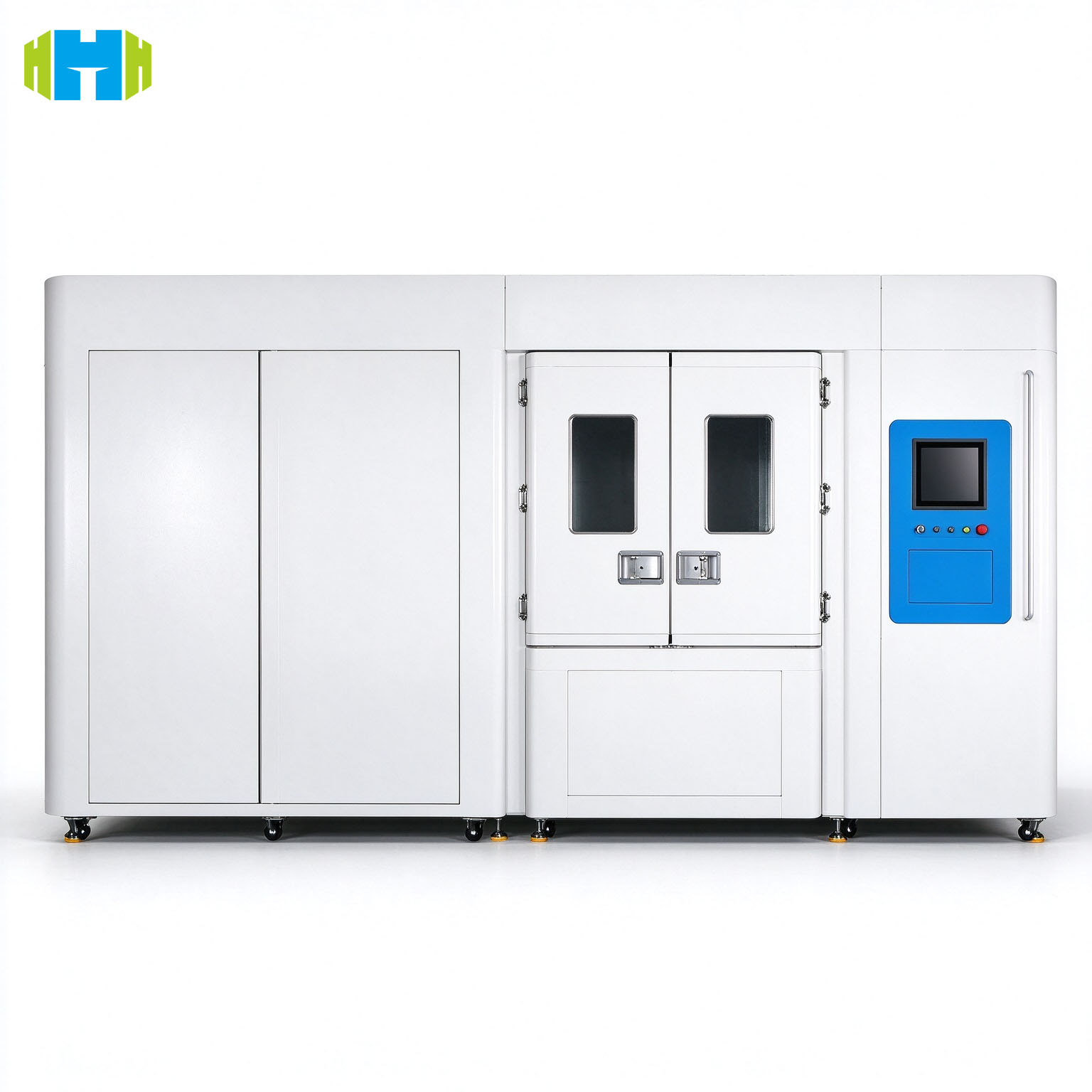

HVAC Radiator Pressure Pulse Test Bench | Heat Exchanger Impulse Fatigue Testing System

The Heat Exchanger Pressure Impulse Tester from HONGCE is a purpose-built durability testing system designed for air conditioning radiators, condensers, evaporators, and other refrigeration heat exchange components. By applying precisely controlled pressure pulses and temperature cycling to test samples, this equipment simulates the long-term mechanical stress that components experience in actual HVAC and refrigeration systems, enabling quantitative evaluation of fatigue life, seal reliability, and structural strength.

Our air conditioner radiator pressure pulsation test machine supports a peak pressure span from 100 kPa to 1000 kPa, with valley pressure adjustable from 0 kPa up to 90% of full scale. The ±0.5% FS pressure control accuracy delivers consistent, repeatable test conditions across every sample — the foundation of reliable fatigue life data.

Unlike competing units limited to 2–3 basic waveforms, our system supports sine wave, trapezoidal wave, triangular wave, sawtooth wave, step wave, linear wave, and fully user-defined waveforms. This flexibility lets you match test profiles to exact real-world operating cycles, whether simulating steady-state runtime or extreme transient pressure spikes.

Recreate the full spectrum of operating environments with medium temperature control from -40°C to 135°C and ambient temperature control from -40°C to 150°C. This wide thermal window covers both frigid cold climate conditions and high-heat equipment room scenarios, ensuring your components perform reliably in every target market.

Choose from 3–30 L/min or 6–80 L/min medium flow ranges, configurable to match the specific flow rates of your radiator and heat exchanger designs. The closed-loop circulation system maintains stable medium conditions throughout extended pulse test runs.

Equipped with a PLC control system and touchscreen HMI, the tester enables straightforward parameter setup, real-time test monitoring, and automatic data logging. Test cycles can be set freely per international standards or custom protocols, and the system automatically generates exportable test reports for quality documentation and certification submissions.

The system features layered safety mechanisms including over-pressure protection, over-temperature protection, leakage alarm, and emergency stop, ensuring operator safety and preventing equipment damage during long unattended test runs.

At the core of our pulse test bench is a high-precision closed-loop pressure control system, paired with advanced waveform generation algorithms and a precision thermal regulation unit. Key technical capabilities include:

• Closed-loop pressure feedback: Real-time pressure adjustment maintains pulse accuracy and stability across millions of cycles
• Dual-stage temperature control: Integrated refrigeration and heating systems sustain precise medium and ambient temperatures
• Automatic data acquisition: Continuous sampling of pressure, temperature, flow, and cycle count with no manual recording required
• Failure detection: The system identifies sample leakage or rupture and automatically stops testing, recording the exact cycle count at failure

Our HVAC radiator pressure pulse test bench is engineered and calibrated to comply with major international and industry standards, ensuring your test results are globally recognized and certification-ready. Applicable standards include:

1. ISO 5149-3:2014 — Refrigerating systems and heat pumps — Safety and environmental requirements — Part 3: Design and construction of components
2. IEC 60335-2-40:2022 — Household and similar electrical appliances — Safety — Part 2-40: Particular requirements for electrical heat pumps, air-conditioners and dehumidifiers
3. ASHRAE Standard 15-2022 — Safety Standard for Refrigeration Systems
4. SAE J2239-2018 — Radiator Pressure Cycle Test (for automotive radiator applications)
5. GB/T 7725-2022 — Room air conditioners (Chinese national standard, aligned with international certification frameworks)

This equipment is compatible with a broad range of heat exchange components:

• HVAC radiators, condensers, and evaporators
• Heat pump heat exchangers
• Automotive radiators and cooling system components
• Micro-channel heat exchangers
• Plate heat exchangers
• Refrigeration system piping and connector assemblies

With this single test bench, you can run a complete suite of durability and performance evaluations:

• Pressure pulse fatigue life testing
• Pressure cycle endurance verification
• High/low temperature pressure shock testing
• Weld strength and seal reliability testing
• Material fatigue property assessment
• Simulated operating condition life validation
• Product design verification and optimization

We provide comprehensive and reliable support for every piece of equipment we manufacture—ensuring you receive our service guarantees, no matter where you are in the world.

• Installation and Training: Our technicians are available for on-site installation, commissioning, and operator training.
• Comprehensive Warranty: We offer a full-machine warranty, with extended warranty options available for core components.
• Lifetime Technical Support: Throughout the entire lifecycle of your equipment, we provide remote troubleshooting, technical consultation, and software updates.
• Rapid Spare Parts Supply: We maintain an extensive inventory of spare parts to ensure a quick response whenever replacements are needed, minimizing downtime.
• Periodic Follow-ups: We reach out to you regularly to ensure your equipment remains in optimal operating condition and to provide recommendations for performance optimization.
