HongCe's independently developed LT-3 tracking tester is specially designed for tracking resistance test of electrical insulation materials. As a source manufacturer, we take "safety first, precision as the soul" as the core, combining intelligent control and humanized design to help you easily meet global standard certification requirements.
Brand :
LT-3Model :
1 SETCertificate :
T/T,L/CProduct Origin :
ChinaPayment Method :
30 working daysIEC 60112 Tracking Tester for Fire Safety Material Testing

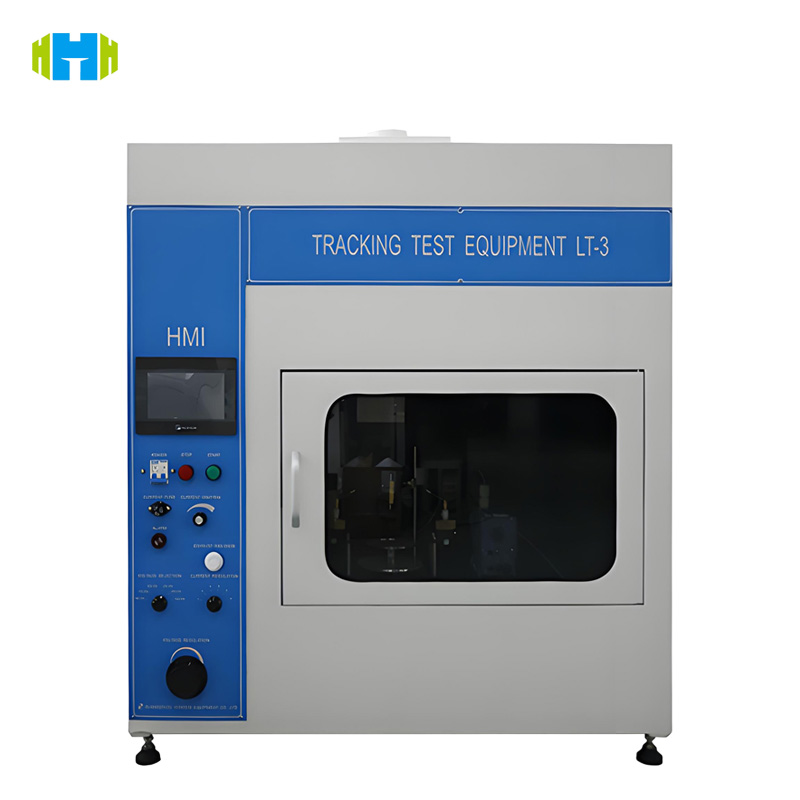

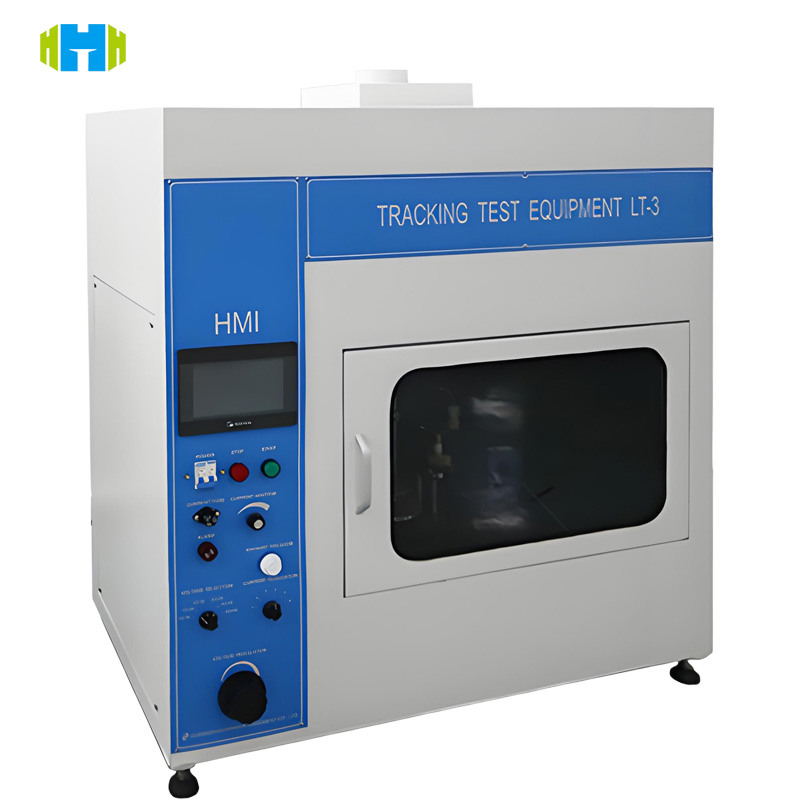

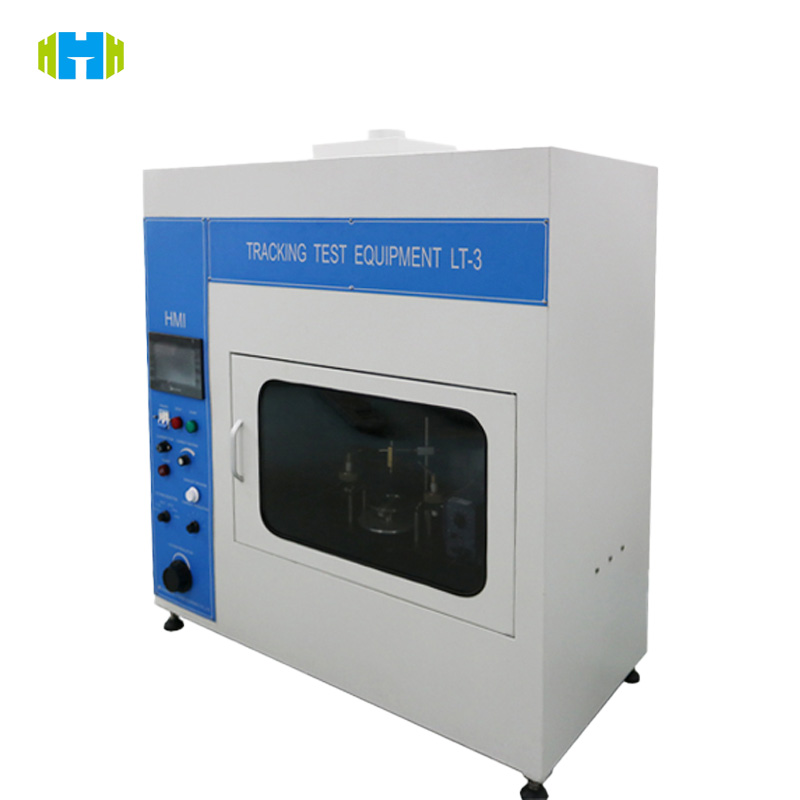

LT-3 Tracking Tester is a professional testing equipment carefully developed by HongCe, designed to accurately evaluate the ability of materials to resist tracking in electric fields and humid environments. Its advanced technology and stable performance can meet the strict testing needs of various scientific research institutions and corporate quality inspection departments.
Why choose this device?
⚡ Ultra-accurate and compliant with international standards: This test device fully complies with the IEC 60112 standard, allowing you to know if your materials will have problems when electrically tracking, ensuring that your materials are not prone to failure in fire.
🔥 Focus on fire safety: We know how important fire safety is, and this device can help you verify the electrical safety of your materials in the event of a fire and avoid some potential dangers.
🔧 High precision and peace of mind: Its measurement technology is very advanced, ensuring that every test is ultra-accurate, even the slightest changes can be captured. Whether you are testing cables, plastics or other materials, it can provide very accurate data.
🌐 Wide range of applications: Whether it is electronic equipment, building materials or cables, this device can easily handle it and provide you with efficient and safe test results.
Highlights of the device
🌡️ Accurate fire testing: It can simulate the actual performance of materials under high voltage, helping you test whether the material can maintain electrical stability in a fire environment.
⚡ All-round compatibility: This device can test a variety of materials, whether it is cables, plastics, building materials, or even electronic components, it can be used for fire safety testing.
🔄 Easy to use, worry-free and labor-saving: The control panel of the device is very intuitive and super easy to set up. Even people without a technical background can quickly get started and easily conduct tests.
Technical parameters:
| Model | LT-2(0.5m³) | LT-3(0.5m³) (Touch screen) |
| Working voltage | 220V/50Hz, 1KVA | 220V/50Hz, 1KVA |
| Control operation mode | Electrical control, button operation | PLC control, 7 inch color touch screen operation, with infrared remote control |
| Testing voltage | 0-600V adjustable, precision 1.5% | |
| Timing device | 9999X0.1S. | |
| Electrodes | Material: Platinum electrode and brass connecting rod | |
| The two electrodes shall have a rectangular cross-section of (5 ± 0,1 ) mm × (2 ± 0,1 ) mm, with one end chisel-edged with an angle of 30° ± 2° (see Figure 1 ). The sharp edge shall be removed to produce an approximately flat surface, 0,01 mm to 0,1 mm wide | ||
| Relative position of electrode | Included angle: 60°±5°, distance is 4±0.1mm | |
| Electrode pressure | 1.00N±0.05N | 1.00N±0.05N, Touch screen display |
| Dripping liquid | The interval time of dropping liquid: 30±5S, digital display, can be preset | |
| Height: 35±5mm | ||
| The number of drips:0-9999 times, can be preset, the volume size of the dripping liquid is controlled by the imported micro pump within 50 ~ 45 drips /cm³ | ||
| Test solutions | Solution A: 0.1%NH4Cl, 3.95±0.05Ωm, Solution B: 0.1%NH4Cl + 0.5± 0.002% sodium-di-butyl naphthalene sulfonate, 1.98±0.05Ωm | |
| Time-delay circuit | 2±0.1S (in 0.5A or larger current) | |
| Short-circuit pressure drop | 1±0.1A 1%, pressure drop 8% MAX | |
| Wind speed | 0.2m/s. | |
| Environmental requirement | 0～40℃, relative humidity≤80%, in the place of no obvious vibration and corrosive gas | |
| Dimensions and weight | WDH=1100×550×1200 mm, 130kg | WDH=1100×550×1200 mm, 130kg |
HongCe's independently developed LT-3 tracking tester is specially designed for tracking resistance test of electrical insulation materials. As a source manufacturer, we take "safety first, precision as the soul" as the core, combining intelligent control and humanized design to help you easily meet global standard certification requirements.
