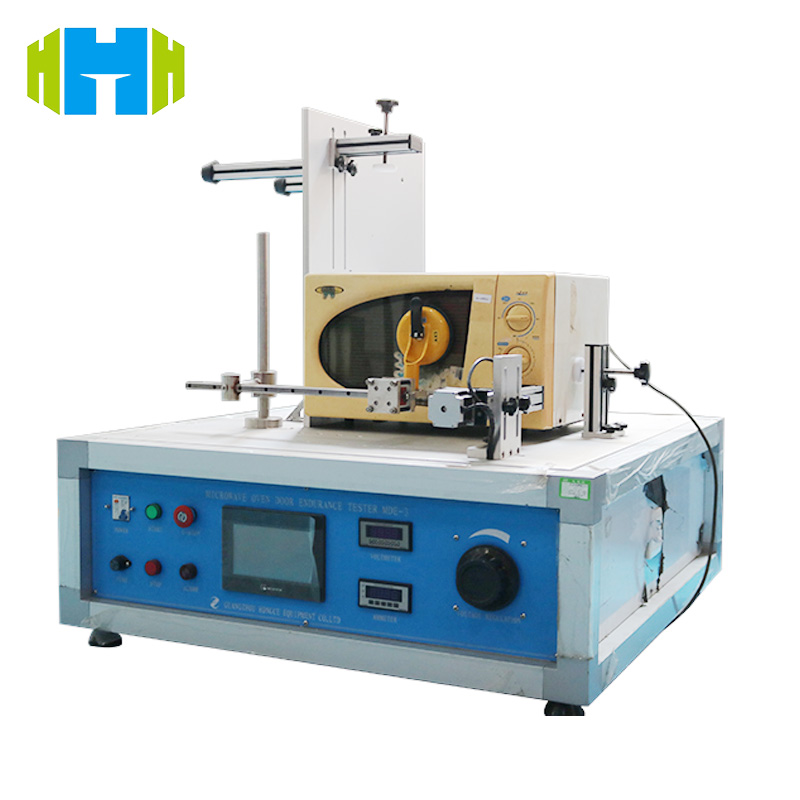

Microwave Oven Door Endurance Tester

Microwave Oven Door Endurance Tester Description:

Microwave oven door endurance tester with PLC and stepper motor control. A stainless steel mechanical arm and vacuum suction mechanism simulate the motion of a human hand, automatically opening and closing the doors of microwave ovens and similar appliances. The system supports customizable test angles and speeds, and is equipped with a TFT true-color LCD touchscreen for intuitive operation.

Its robust aluminum alloy frame supports both left-opening and top-opening door designs across various sizes. The power supply socket has the function of detecting, which can judge whether the test sample is electrified;during load test, if the test sample is not electrified during the test, the equipment will be automatically shut down. This feature can be enabled on the demands.

Standards: IEC 60335-2-2 clause 18

Application:

It is a core testing device for microwave oven and oven safety certification, designed for home appliance manufacturers and quality inspection agencies to verify the mechanical durability and sealing performance of microwave and oven door systems.

Microwave Oven Door Endurance Tester Key Features:

✅ Intelligent Control System

✅ Human Hand Simulation

✅  High-Resolution Touch Interface

✅  Compatible with Various Door Types

✅  Power Supply Detection Function

✅  High-Quality Structural Materials

Microwave Oven Door Endurance Tester Technical Parameters:
