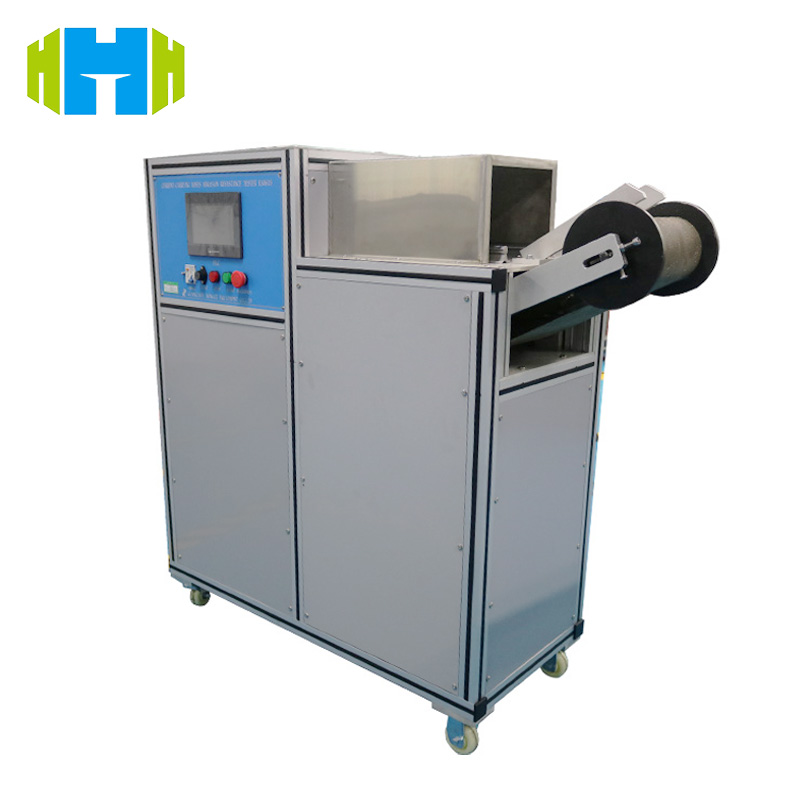

This IEC60335-compliant three-station hose abrasion tester is a specialized testing machine designed to evaluate the durability and abrasion resistance of flexible hoses used in household appliances. Fully compliant with the IEC60335 safety standard, this equipment helps manufacturers and laboratories conduct precise abrasion testing, ensuring product safety and extending product life.
Brand :
HongCeModel :
HJ0615Certificate :
Calibration certificate(cost additional)Product Origin :
ChinaPayment Method :
T/T, L/CRegular Packaging :
PlywoodThree-Station Hose Abrasion Tester for IEC60335 Compliance
This tester features three independent test stations, enabling simultaneous evaluation of multiple samples for improved efficiency and consistency. It simulates actual operating conditions by applying controlled pressure and friction cycles, helping to identify weaknesses in hose materials before products are released to the market.
This abrasion tester utilizes high-quality components and a user-friendly control system, ensuring stable performance, repeatable test results, and simple operation. It is widely used in quality control, R&D, and compliance verification in industries such as home appliances, electronics, and materials testing.
Parameter:
| Category | Parameter Details |
| Model | HJ0615 |
| Test Stations | 3 workstations (operate synchronously, independent counting) |
| Crank Speed | 30r/min (Accuracy: ±0.5r/min, presettable 20-40r/min) |
| Horizontal Stroke | 300mm (reciprocating distance, error: ±1mm) |
| Abrasive Belt Speed | 0.1m/min (ISO 6344-2 P100 corundum abrasive belt) |
| Test Cycles | 0-999,999 cycles (presettable, 1-cycle resolution, automatic stop at completion) |
| Load Mass | 1kg (vertical load, maximum distance from roller center: 600mm) |
| Hose Diameter Range | 10-50mm (compatible with vacuum cleaner hoses, washing machine pipes, etc.) |
| Control System | PLC + 7-inch touch screen (Chinese/English switchable, real-time parameter curve display) |
| Power Supply | AC220V±10%/50Hz, rated power: 5kW (with leakage protection) |
| Working Environment | Temperature: 0-40℃; Humidity: 10%-90%RH (non-condensing) |
| Protection Class | IP54 (main unit), IP43 (test chamber, dust-proof design) |
| Dimensions | 1000×900×1100mm (L×W×H, including protective cover and counterweight system) |
| Weight | 100kg (aluminum alloy frame + stainless steel roller) |
| Data Storage | 64GB built-in storage (supports 100,000+ test data, USB export in CSV/PDF format) |
| Communication | RS485/Modbus TCP (supports remote monitoring and factory system integration) |
Product Advantages
Complies with IEC 60335-2-2 standards to accurately test the crushing resistance and electrical integrity of current-carrying hoses used in household appliances.
