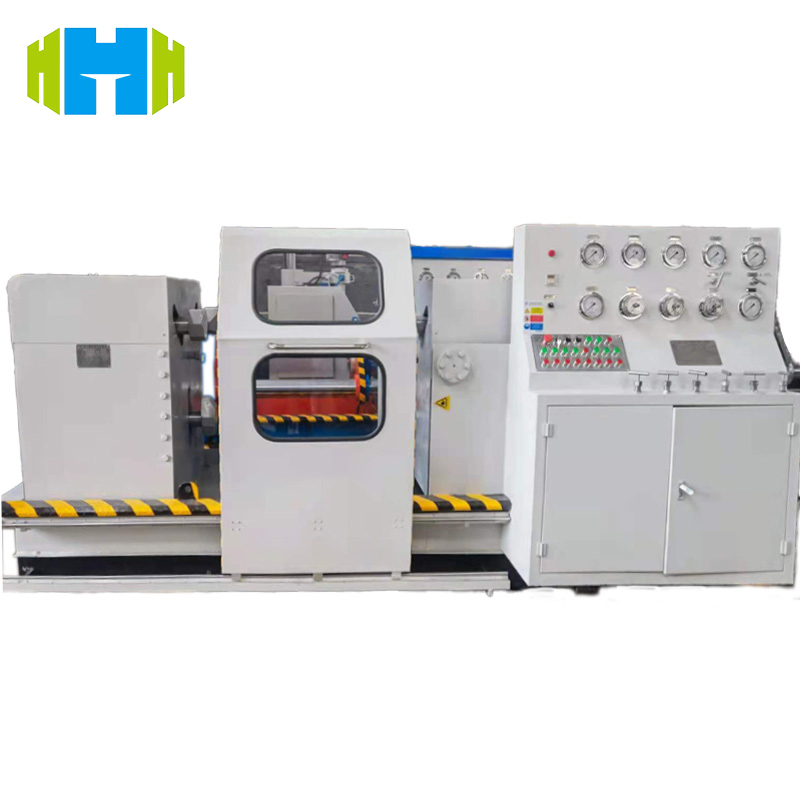

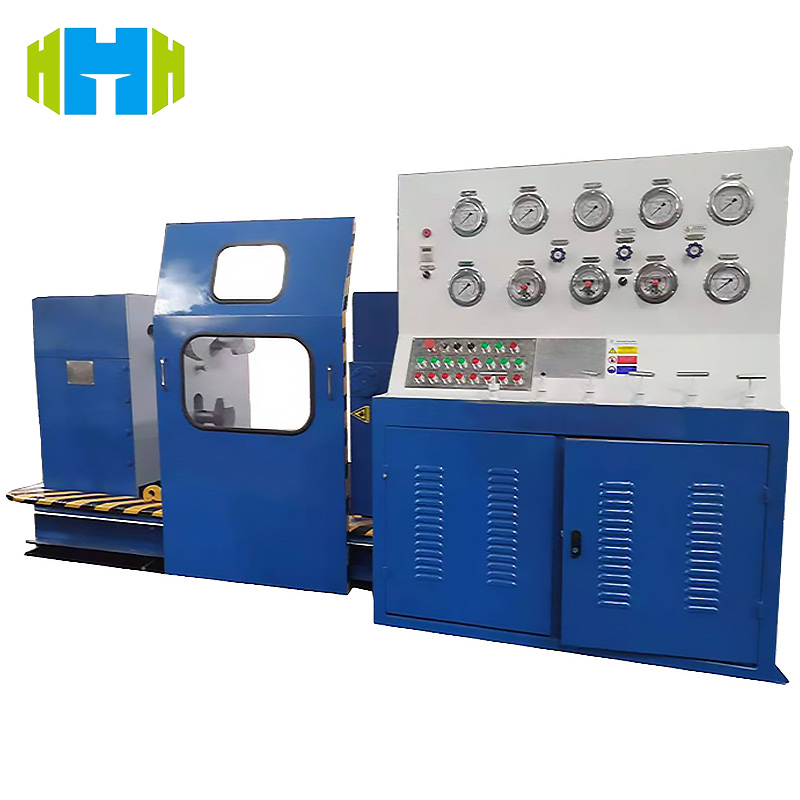

Professional Comprehensive Water Pump Test System (PN1.6 - 48MPa) with High Functional Integration

Product Features

• High Functional Integration: The system integrates electromechanical, hydraulic, pressure testing, and liquid medium storage & circulation functions. It delivers full-featured performance with stable operation.
• High Degree of Automation: Adopting hydraulic drive and PLC computer control, it effectively boosts work efficiency and reduces labor intensity.
• Wide Test Range: Covering caliber specifications of DN15 - 1200 (NPS1" - 28") and a pressure range of PN1.6 - 48MPa (Class150 - 2500lb), it accommodates testing of various high, medium, and low-pressure valves.
• Precise Clamping: It uses the valve flange end face for positioning, with movable reverse claws clamping the flange back. This clamping method complies with national standards for valve pressure testing, ensuring accurate and reliable test results.
• Excellent Material: The body is constructed from 25# carbon steel—robust and durable—guaranteeing long-term stable equipment operation.
• Various Operating Methods: Supports multiple operation modes: hydraulic drive, PLC computer control, and button control. This flexibility meets the diverse needs of different users.
• Convenient Connection: Adopts a flange connection design, ensuring stable connections and easy assembly/disassembly.
• Authoritative Recognition: Has obtained new product certificates and national patents, affirming its advanced technology.



International Reference Standard

Product Use

Test Objects

Test Items

• Strength Test: This test evaluates the structural strength of the valve under different pressures to ensure that the valve will not break within its working pressure range.
• Seal Test: It checks the sealing performance of the valve, testing whether the valve has any leakage under the specified pressure and assessing the reliability of the sealing components.
• Leakage Test: This test accurately measures the leakage of the valve under certain pressure and medium conditions to determine whether the valve meets the sealing performance standards.



Technical Parameters
