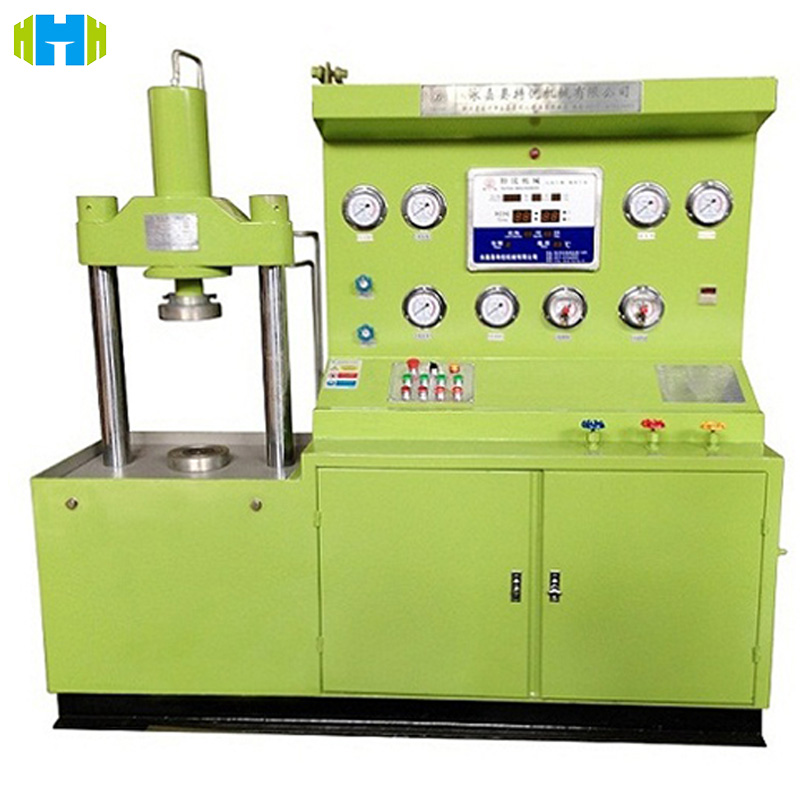

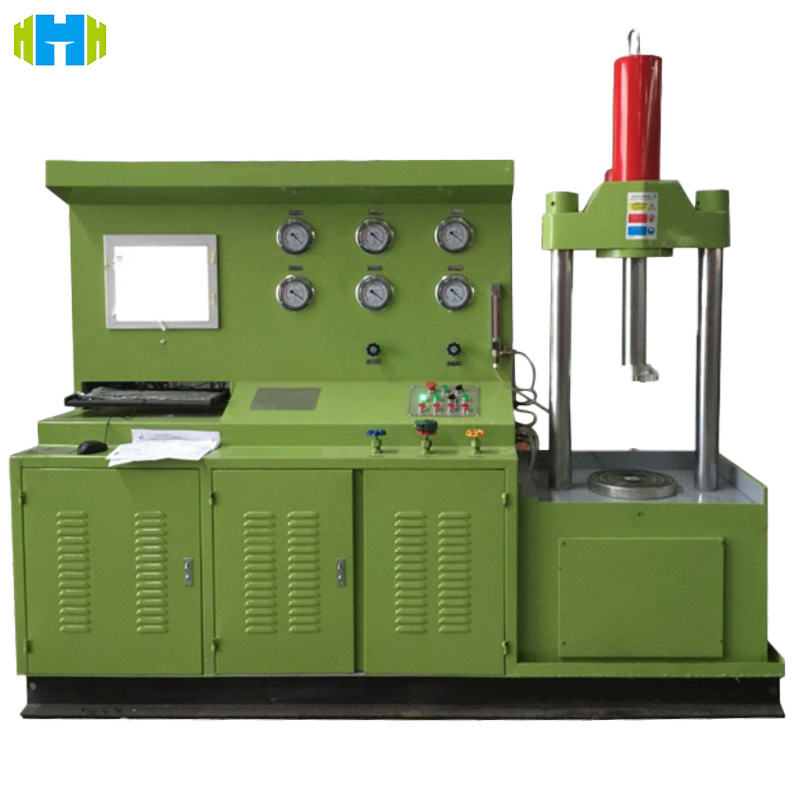

The Vertical Valve Flow Meter Intelligent Testing Equipment is an advanced test system designed for accurate performance evaluation of vertical valves and flow meters. Featuring intelligent control, precise measurement, and flexible test configurations, it ensures reliable data for product development, quality inspection, and compliance with international standards.
Brand :
HONGCEModel :
WPT-14Certificate :
Calibration certificate(cost additional)Product Origin :
ChinaPayment Method :
L/C, T/TRegular Packaging :
PlywoodVertical Valve Flow Meter Intelligent Testing Equipment
The Vertical Valve Flow Meter Intelligent Testing Equipment is a specialized test system designed for precise performance evaluation of vertical valves and flow meters under various working conditions. By integrating advanced control technology, data acquisition modules, and intelligent software, the equipment ensures highly accurate testing results for both laboratory research and industrial quality control.
| Category | Parameter Details |
| Model | WPT-7 |
| Flow Test Range | 0.1-200m³/h (Accuracy: ±0.3%FS, Electromagnetic Flowmeter) |
| Pressure Test Range | 0-40MPa (Static Pressure), 0-25MPa (Pulse Pressure) |
| Test Media | Water, Hydraulic Oil, Natural Gas (Optional Anti-Corrosion Coating for Acid/Alkali) |
| Temperature Range | Operating: 0-80℃; Storage: -20-70℃ |
| Leakage Detection | Liquid: ≤0.01L/min; Gas: ≤0.1m³/h |
| Control System | PLC + 10-inch Touch Screen (1280×800 Resolution, Multi-Language Support) |
| Data Storage | 64GB Built-in SSD (Supports 100,000+ Test Records, USB/Ethernet Export) |
| Test Port Size | DN25-DN300 (Flange/Threaded/Butt-Welded Connections) |
| Drive System | Servo Motor (Power: 15kW, Speed: 0-3000rpm) |
| Protection Class | IP54 (Control Cabinet), IP65 (Test Chamber) |
| Power Supply | AC380V±10%, 50/60Hz, Rated Power: 25kW (Peak: 35kW) |
| Dimensions | 2500×1800×3000mm (L×W×H, Including Support Frame) |
| Weight | 2000kg (Stainless Steel Frame + Aluminum Alloy Fixtures) |
| Communication | RS485/Modbus TCP, USB 3.0, Ethernet (Support OPC UA Protocol for MES Integration) |
| Noise Level | ≤75dB (Measured at 1m Distance, No-Load Operation) |
Product Features
Comprehensive Testing Capabilities – Supports functional verification, endurance testing, flow rate accuracy, leakage detection, and dynamic performance analysis for valves and flow meters.
Intelligent Control System – Equipped with PLC or computer-based control, allowing automatic operation, real-time monitoring, and programmable test sequences.
High Measurement Accuracy – Utilizes precision sensors and calibrated measuring instruments to ensure reliable flow rate and pressure readings.
Flexible Configuration – Adjustable test parameters such as pressure, flow, and temperature to simulate real operating environments.
Data Recording & Analysis – Automatic storage of test results with export functions for statistical evaluation and traceability.
Safety & Reliability – Built-in overload protection, emergency stop, and fault alarm systems guarantee safe long-term operation.
Applications
Valve Manufacturers – Product R&D, design validation, and quality control.
Flow Meter Producers – Calibration and performance verification of flow measurement devices.
Testing Laboratories – Standardized testing according to industry and international requirements.
Industrial Quality Assurance – Ensuring compliance with customer specifications and regulatory standards.
