Water Pump Comprehensive Performance Test System

Water Pump Comprehensive Performance Test System Description：

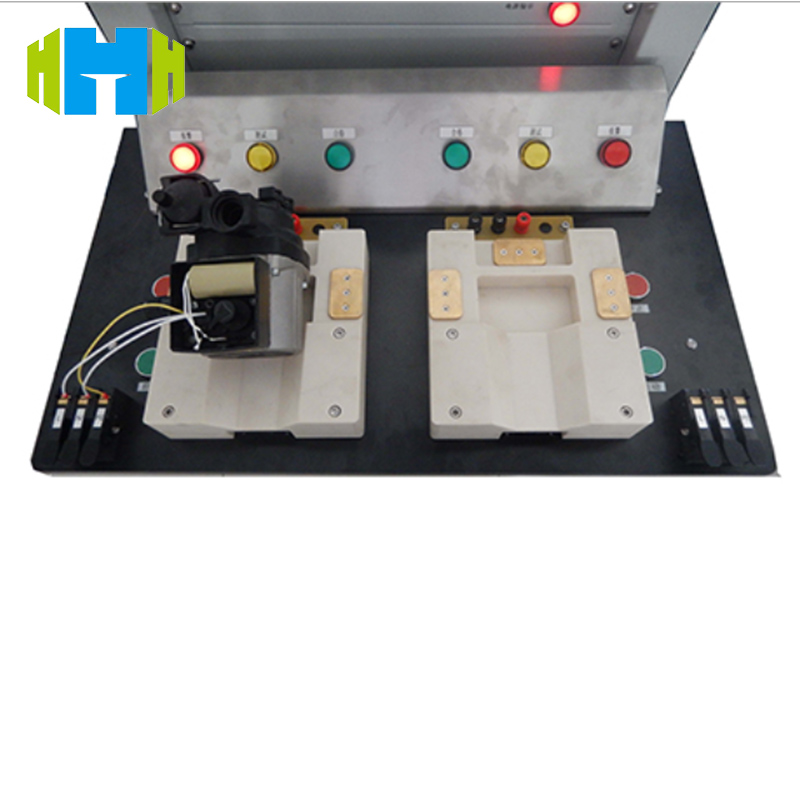

HJWPCT0001 water pump comprehensive performance test system is an advanced motor testing solution designed for a wide range of pump motors, including centrifugal, submersible, and vacuum pumps.  It integrates precision electrical measurement with flexible test configuration, enabling comprehensive testing of stator and rotor components.  covering over 10 key parameters to meet global quality certification requirements.

Water Pump Comprehensive Performance Test System Features：

✅ Comprehensive Testing Capabilities

Covers AC/DC withstand voltage, insulation resistance, coil resistance, and low-voltage startup.

✅ Exceptional Accuracy

Guarantees stable testing with voltage and current accuracy levels both within ±0.5%.

✅ Versatile Motor Support

Compatible with AC (single/three-phase) and DC brushless pump motors.

✅ Fully Automated Workflow

Programmable sequences and real-time data recording with timing from 1–300 seconds.

✅ Intelligent Temperature Compensation

Compensates for ambient temperature to maintain resistance test accuracy.

✅ Certified Electrical Safety

Certified to IEC 60791 and GB/T 12785 for electrical testing safety.

✅ Modular Testing Channels

Five test channels (high, medium, low, micro, ultra-micro) for flexible configurations.

International Standards

• IEC 60791:2008
• GB/T 3216-2005
• GB/T 12785-2002

Applications

• Test Objects:
  • Single/three-phase AC pump motors, DC brushless motors.
  • Pump types: Centrifugal, submersible, vacuum, self-priming, sewage pumps.
• Test Items:
  • AC withstand voltage (200-3000V ±8%).
  • Insulation resistance (1-500MΩ ±5%).
  • Coil resistance (10mΩ-20kΩ ±0.5%).
  • Low-voltage startup (20-600V ±0.5%).
  • Rotational direction (forward/reverse).

Technical Parameters
