Home Environmental Test Equipment

Salt Spray Test Chamber Cyclic Corrosion Test Equipment

Salt Spray Test Chamber Cyclic Corrosion Test Equipment

  • Brand :

    HH0813
  • Model :

    1 set
  • Certificate :

    Negotiatable
  • Product Origin :

    China
  • Payment Method :

    5 sets per month

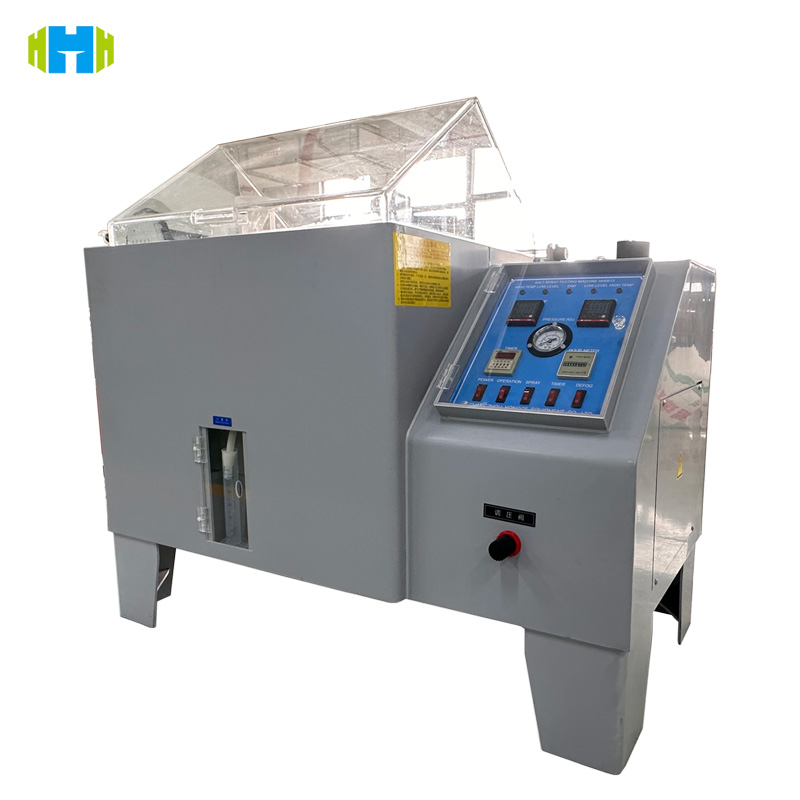

Salt Spray Test Chamber Cyclic Corrosion Test Equipment



In today's fierce global competition, the corrosion resistance of products is the key to winning market trust. The HH0813 salt spray test chamber manufactured by HongCe Company takes "precision, reliability, and efficiency" as its core, simulates complex environments such as salt spray, humidity, heat, and dryness, and comprehensively evaluates the corrosion resistance of coatings, electroplating, metals, and electronic components. Whether it is salt spray aging testing of automotive parts or anti-rust verification of high-end electronic products, it can provide accurate data to help you discover potential defects in advance and ensure the durability of products in harsh environments.



Why choose this test equipment?

🌧️ Real environment simulation: This test equipment not only simulates salt spray environment, but also simulates cyclic corrosion environment such as temperature change, humidity, and dryness. Whether it is automotive parts, electronic equipment, or metal materials, it can be used to test their performance under different conditions.

🕒 Automated cycle test: Through the design of automated cycle, this equipment can simulate long-term environmental changes without human intervention. This means you can save a lot of testing time while ensuring the accuracy and consistency of test results.

🛠️ Versatile application: This equipment is not only suitable for common materials such as metals, coatings, and plastics, but also can test the performance of a variety of products in salt spray environments. It is very suitable for industries such as automobiles, aviation, electronics, and coatings.

⚙️ Easy to operate: The operating interface design of this device is very intuitive, and even operators without a deep technical background can quickly get started. Simple settings allow you to start testing quickly, saving time and effort.



Technical Parameters:

Model HH0813 HH0813A HH0813B HH0813C HH0813D
Inner chamber size (mm) 600*450*400 900*600*500 1200*800*600 1600*800*600 2000*800*600
Outer chamber size (mm) 1070*600*1180 1410*880*1280 1900*1180*1600 2300*1180*1500 2700*1180*1600
Test chamber temperature Salt water test method (NSS ACSS)35℃±1℃/ corrosion resistance test method(CASS)50℃±1℃
Pressure barrel temperature Salt water test method(NSS ACSS)47℃±1℃/ corrosion resistance test method(CASS)63℃±1℃
Salt water temperature 35℃±1℃ 50℃±1℃
Test chamber capacity 108L 270L 480L 800L 1440L
Salt water tank capacity 15L 25L 40L 40L 40L
Salt concentration Sodium Chloride Solution concentration of 5% or add 0.26g of copper chloride (CuCl2 2H2O) per every liter of the Sodium Chloride Solution in the concentration of 5%
Compressed air pressure 1.00±0.01kgf/cm²
Spray amount 1.0~2.0ml/80cm²/h (collecting at least for 16 hours, take the average)
Relative humidity of testing chamber More than 85%
Acid value PH 6.5~7.2 3.0~3.2
Spray mode Programmable spray (including continuous spray and intermittent spray)
Meet the standards JIS, ASTM, CNS
Power supply 120V,60Hz



Applicable industries

Automotive industry: Automakers use this equipment to test the durability of automotive parts, exterior coatings and metal materials in salt spray environments to ensure their performance in severe weather.

Aerospace: Aviation parts need to withstand various environmental challenges. Use this equipment to test the corrosion resistance of aviation materials to ensure safety and reliability.

Electronics industry: Electronic equipment, especially external metal and connecting parts, need to be tested with salt spray to ensure long-term use in humid and corrosive environments.

Construction and coatings: Building materials and coatings also need to be tested with this equipment to verify their long-term corrosion resistance in humid or marine environments.
