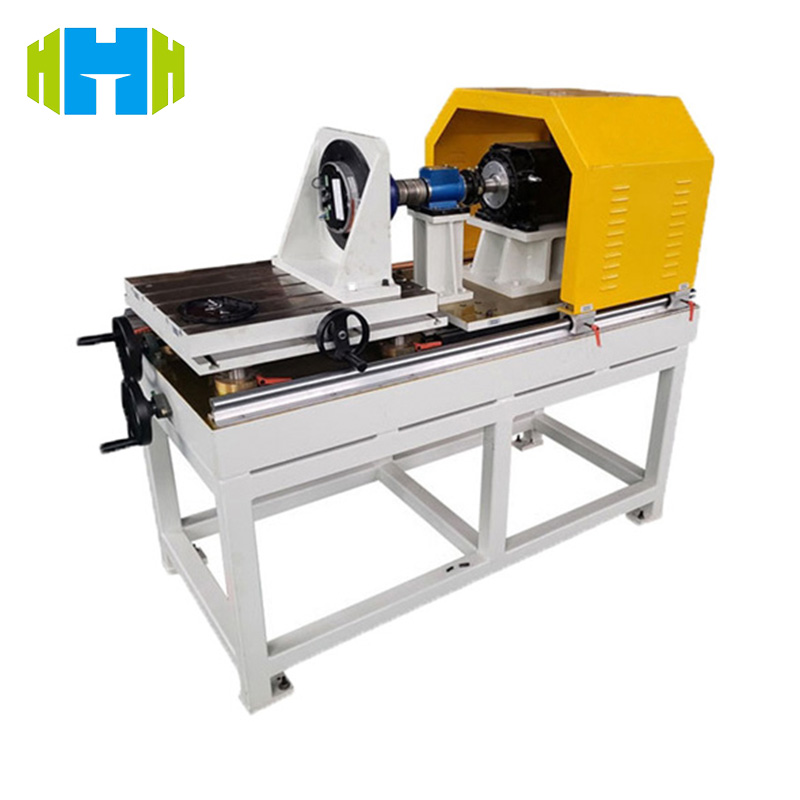

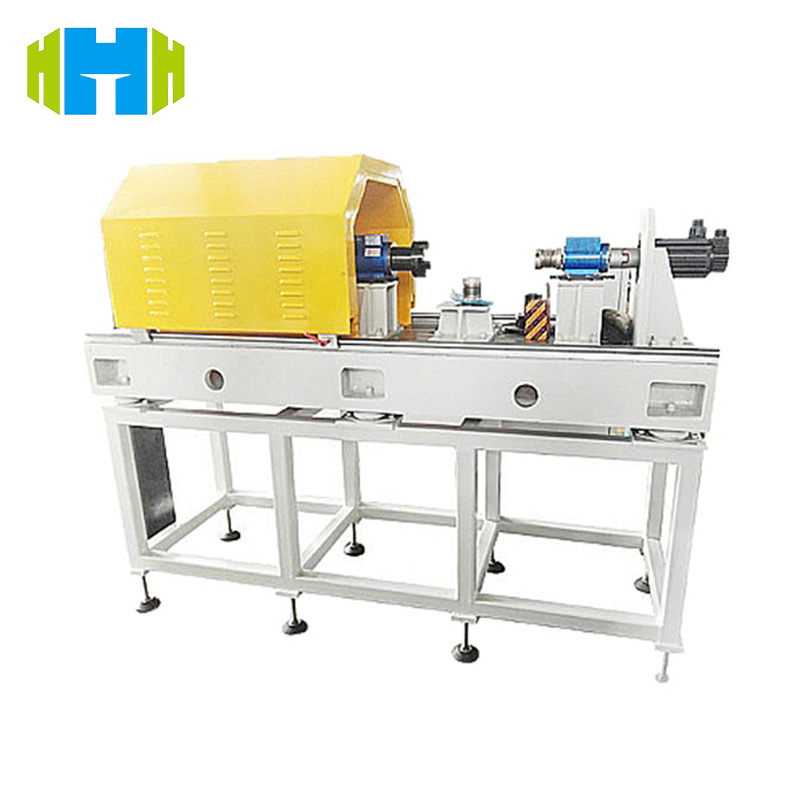

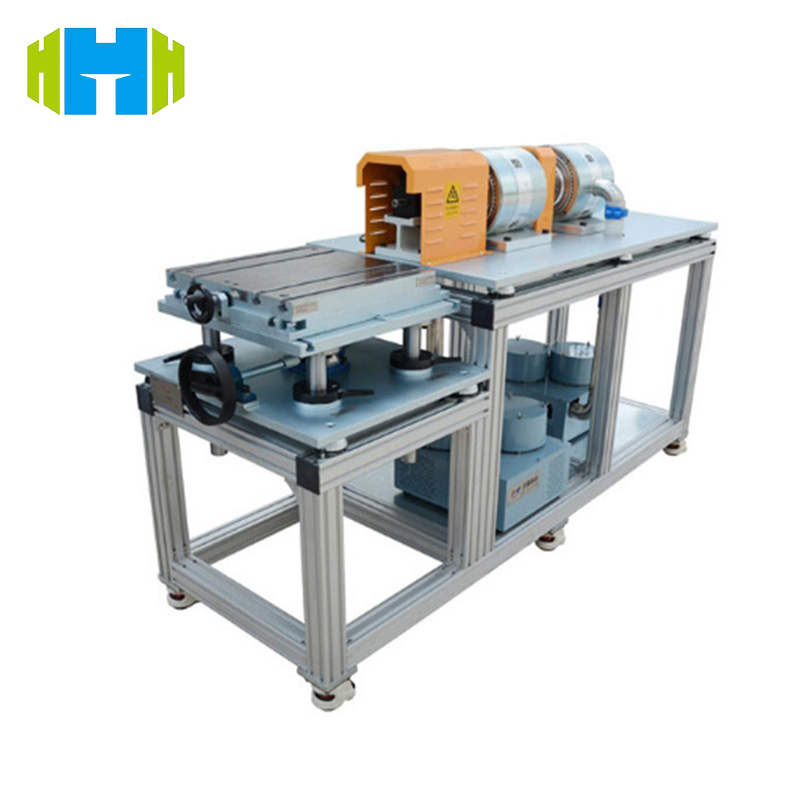

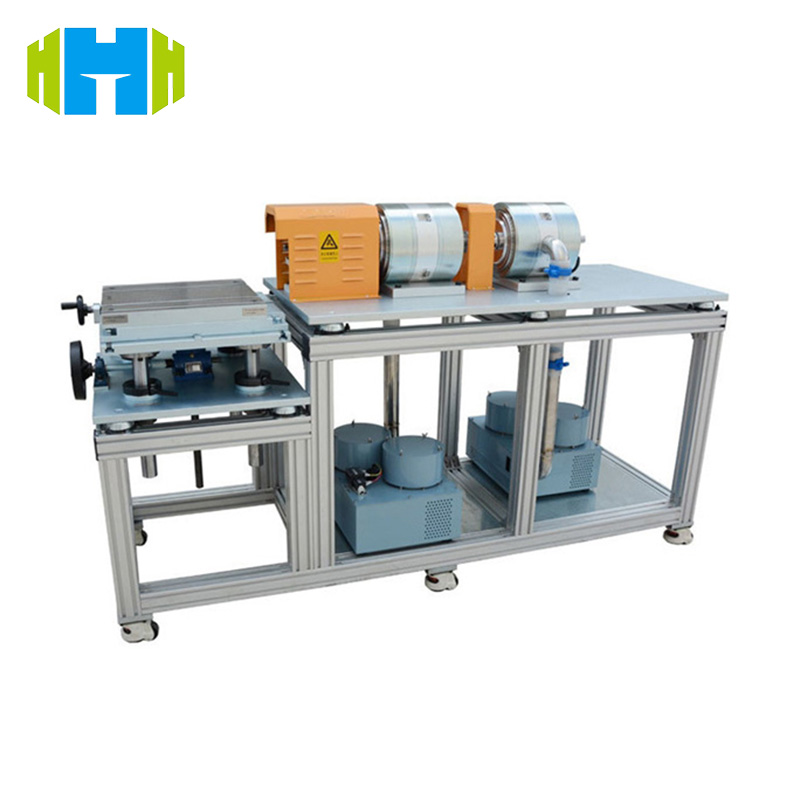

High Speed Laboratory Motor Test Bench

High Speed Laboratory Motor Test Bench Description:

The motor test bench is designed to evaluate a wide range of electrical and mechanical parameters of motors. It checks input factors like voltage, current (AC or DC), power, and power factor, while also examining how the motor responds mechanically—measuring things like torque at different speeds, output power, and efficiency. It goes further by tracking temperature changes, noise, and vibration, offering a more complete view of performance. Whether you’re testing standard AC or DC motors, asynchronous motors, synchronous motors, permanent magnet motors, or newer models used in electric vehicles, this motor test bench provides solid, trustworthy data to support everything from R&D and factory testing to field servicing and quality checks.

International Reference Standards

Our motor test bench adheres to several authoritative international standards, to ensure reliable and standardized motor testing.

IEEE 112-2004, ISO 20601:2019 and GB/T 755-2008

Application Areas

The motor test bench is widely applied in industries such as new energy vehicle manufacturing, aerospace, industrial automation, high-end equipment and advanced manufacturing. It plays a vital role in motor development, quality assurance, and post-market performance checks—offering dependable data to help improve product reliability and operational efficiency.

Motor Types Tested

Supports testing of various motor technologies, including AC/DC motors, permanent magnet motors, synchronous and asynchronous motors, new energy vehicle drive motors, high-speed compressors, and maglev motor systems.

Major test items of motor test bench:

• Power and torque characteristic test of motor with controller
• Temperature rise test of motor with controller
• Motor with controller locked-rotor test
• Motor controller control strategy development verification test
• Motor with controller maximum speed test
• Braking regenerative energy feedback test of motor with controller
• Motor external characteristic test
• Development and matching optimization test of motor and controller powertrain
• Performance test and calibration test of motor and controller powertrain
• Efficiency map test
• Accelerated response test
• Torque response test
• Endurance test of steady-state cyclic loading

Parameter of motor test bench:
