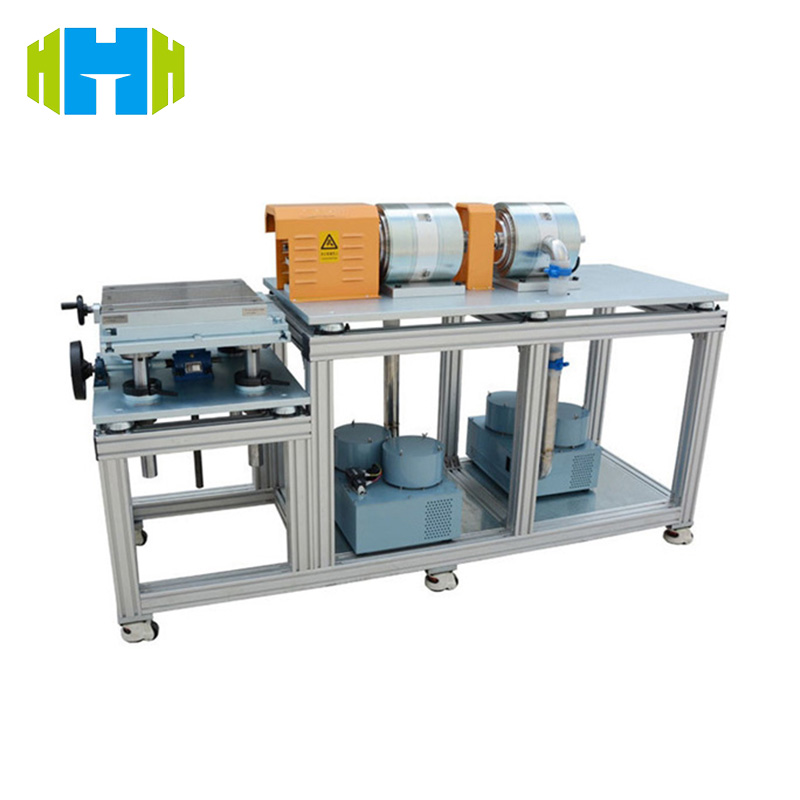

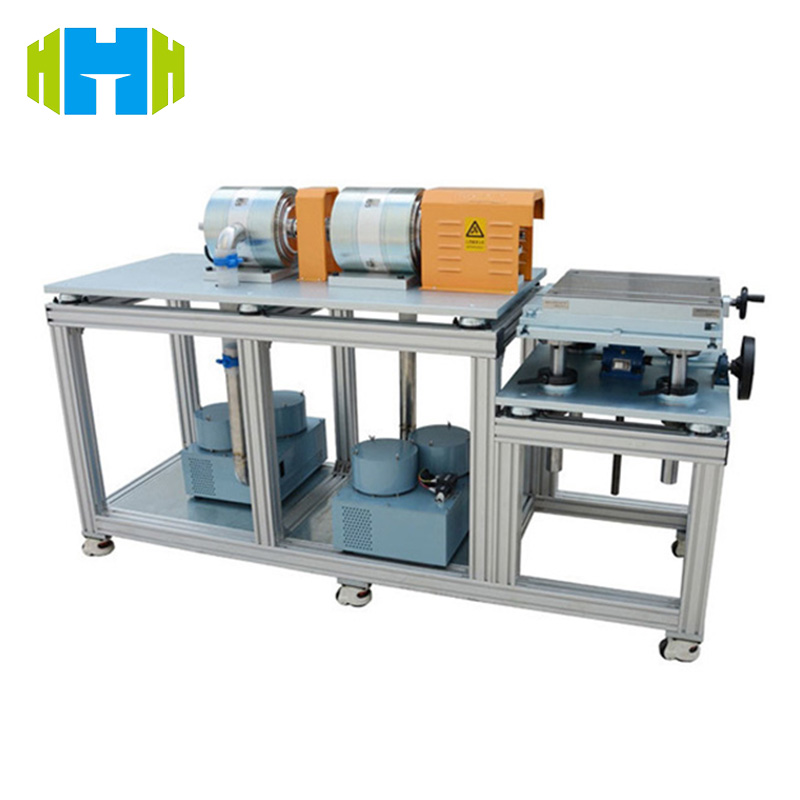

The high-speed and high-power motor test bench is a versatile testing system designed for various high-speed motor applications, including new energy vehicle drive motors, high-speed air compressor motors, and high-speed magnetic levitation motors.
Brand :
HONGCEModel :
HC-MO01Certificate :
Calibration certificate(cost additional)Product Origin :
ChinaPayment Method :
L/C, T/TRegular Packaging :
PlywoodIEC 60034 High-Speed and High-Power Motor Test Bench (Test System)
This test system is primarily used to measure key electrical and mechanical performance parameters of motors, such as:
Input parameters: voltage, current (AC/DC), input power, and power factor (AC)
Output parameters: torque (rated, locked-rotor, starting, and maximum), rotational speed, and mechanical output power
Efficiency
Temperature rise, vibration, and noise
It supports both type tests and routine (factory) tests, providing accurate performance data for R&D, production, maintenance, and field application purposes.
The system is compatible with various motor types, including asynchronous motors, synchronous motors, permanent magnet motors, AC/DC motors, and new energy drive motors.
The motor test bench supports a comprehensive range of test items, including but not limited to:
Power and torque characteristic tests (with motor controller)
Temperature rise test (with motor controller)
Locked-rotor test (with motor controller)
Control strategy development and validation test (for motor controller)
Maximum speed test (with motor controller)
Braking and regenerative energy feedback test (with motor controller)
External characteristic test
Powertrain development and matching optimization test (motor + controller)
Performance and calibration test (motor + controller powertrain)
Efficiency map test
Acceleration response test
Torque response test
Endurance test under steady-state cyclic loading
| Parameter | Range | Precision / Grade |
| AC Voltage Measurement | 3.0 – 500 V | 0.5 class |
| AC Current Measurement | 0.020 – 40.00 A | 0.5 class |
| DC Voltage Measurement | 3.0 – 300 V | 0.5 class |
| DC Current Measurement | 0.020 – 50.00 A | 0.5 class |
| Power Measurement | Calculated as U × I | 0.5 class |
| Torque Measurement | 0.1 – 100 N·m | 0.5 class |
| Speed Measurement | Up to 8000 r/min | — |
The high-speed and high-power motor test bench offers a comprehensive, precise, and flexible testing solution for evaluating motor performance under various operating conditions.
It provides reliable test data to support product development, performance optimization, and quality assurance in modern motor and drive system applications.
Engineered for advanced high-speed motor applications, this motor test bench is widely used in the testing of new energy vehicle drive motors, high-speed air compressor motors, and high-speed magnetic levitation motors. The installation platform can be tailored to the motor under test, with options for flange or base mounting, ensuring compatibility with various test setups.
Details
HCTE-MPTE-003 is a versatile engine testing system designed for detailed analysis of diesel, gasoline, and gas engines. Offering up to 110 kW of power handling and 175 N·m torque capacity, this engine test bench allows for comprehensive testing of engine parameters such as speed, torque, power output, and fuel efficiency. Widely used in vehicle manufacturing, marine engineering, and generator set development, this engine test bench ensures reliable performance evaluation and compliance testing requirements.
Details
The HC-JSJ-001 Reducer Test Bench is a high-precision dynamometer for evaluating reducers' performance. With 0.2% torque/speed accuracy and ISO 6336 compliance, it measures over 16 key parameters. Suitable for gear, worm, and planetary reducers, it features automated control and energy-saving technology, making it ideal for manufacturing, maintenance, and R&D testing.
Details

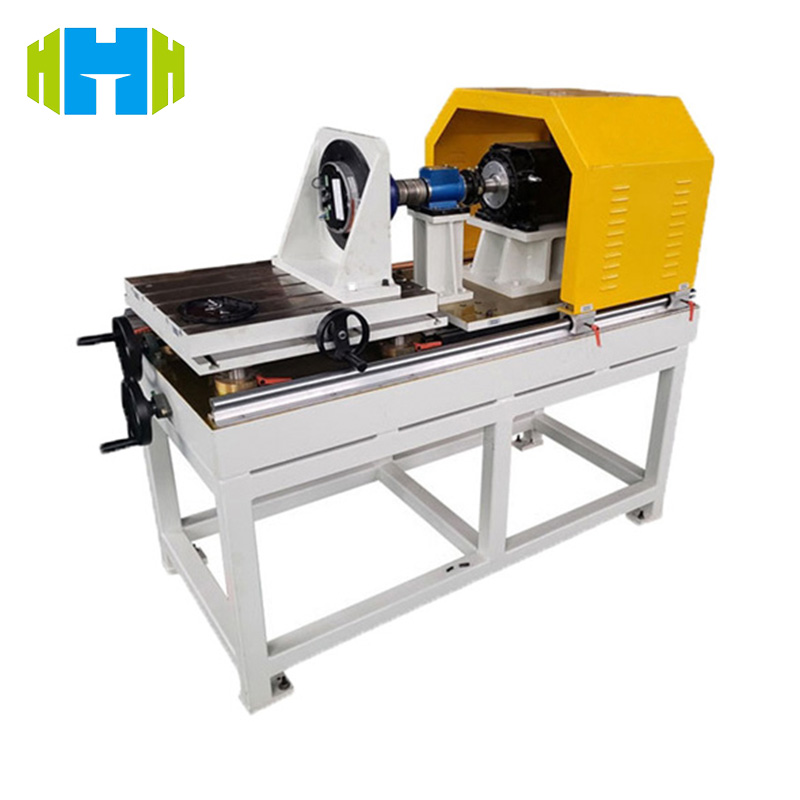

The test bench features a robust structure, flexible control software, and modular configuration, making it suitable for a wide range of motor types, including high-speed motors, traction motors, and industrial drives. Whether for academic research, product development, or compliance verification, this equipment offers the precision and stability required for modern motor testing.
Details
The high-speed and high-power motor test bench is a versatile testing system designed for various high-speed motor applications, including new energy vehicle drive motors, high-speed air compressor motors, and high-speed magnetic levitation motors.
Details
The MTP-002 is an industrial-grade durability test platform for high-voltage motors, aircraft engines, and automotive drive systems.It features a hysteresis brake and adaptive pneumatic grips to simulate dynamic loads up to 6000 rpm, supporting 50,000-hour accelerated life tests in compliance with ISO 1940-1.
