The MTP-002 is an industrial-grade durability test platform for high-voltage motors, aircraft engines, and automotive drive systems.
It features a hysteresis brake and adaptive pneumatic grips to simulate dynamic loads up to 6000 rpm, supporting 50,000-hour accelerated life tests in compliance with ISO 1940-1.
Brand :
HONGCEModel :
MPT-002Certificate :
Calibration certificate(cost additional)Product Origin :
chinaPayment Method :
L/C, T/TRegular Packaging :
Plywood
5000 N·m Hysteresis Brake – Torque accuracy within ±0.05% FS

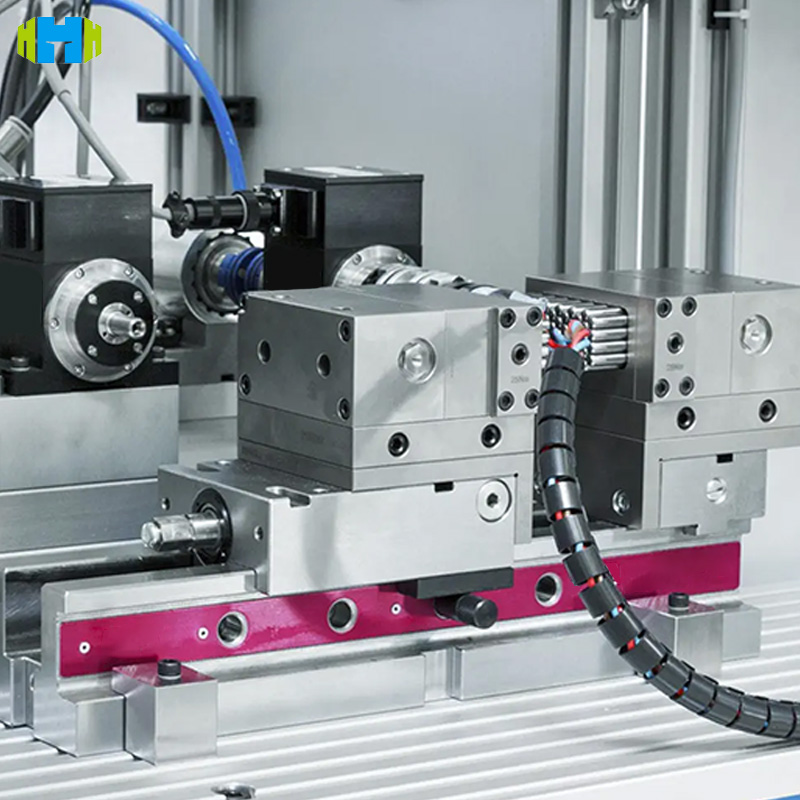

Adaptive Pneumatic Grips – Compatible with shaft diameters Ø20–200 mm
Integrated -40°C to +150°C climate chamber (optional) for temperature-controlled endurance testing
Convertible vertical/horizontal architecture
Supports simultaneous dual-motor comparison testing
Automotive Industry
Durability verification for new energy drive motors (ISO 8854) and turbochargers (ISO 2710-1)
Aerospace
Vibration fatigue testing of aircraft engines in accordance with RTCA DO-160G
Industrial Manufacturing
Lifetime evaluation of pumps and compressors (ISO 1217)
Reliability testing of mechanical actuators (ISO 13849)
Military-Grade Test Precision
Torque resolution: ±0.05% FS
Speed control accuracy: ±1 rpm
Intelligent Operating Condition Simulation
Built-in operating profiles for automotive, aerospace, and marine systems
Includes WLTC and FAR 33 dynamic condition libraries
Dual-Axis Synchronization Technology
Independent control of two workstations
Improves test efficiency by up to 200%
Industry 4.0 Integration
MES connectivity via OPC UA protocol
Remote real-time monitoring via web or mobile interface
Modular Expansion
Compatible with IPX7-rated climate chambers and three-axis vibration platforms compliant with IEC 60068-2-6
| Standard | Clause | Requirement |
|---|---|---|
| ISO 1940-1:2022 | 6.3.2 | Balancing grade G2.5 @ 6000 rpm |
| ISO 8854:2019 | Annex B | 500-hour durability test for automotive alternators |
| IEC 60034-2-1:2014 | 8.2 | Motor efficiency mapping (accuracy ±0.2%) |
| RTCA DO-160G | Section 8.0 | Vibration spectrum analysis for aircraft engines |
| Parameter | Specification |
|---|---|
| Torque Capacity | 0–5000 N·m (continuously adjustable) |
| Speed Range | 50–6000 rpm (constant torque/power modes) |
| Test Stations | Dual-station independent control (convertible vertical/horizontal setup) |
| Shaft Compatibility | Ø20–200 mm (adaptive pneumatic clamping) |
| Data Acquisition Rate | 10 kHz dynamic torque and vibration sampling |
| Control Interface | EtherCAT / Profinet / RS485 + 10" touchscreen |
| Environmental Simulation | Optional chamber: -40°C to +150°C (±1°C stability) |
| Power Supply | Three-phase 480 VAC ±10%, 50–60 Hz, 80 kVA |
| Frame Structure | Dual-column reinforced frame (static stiffness ≥5 GN/m) |
The MTP-002 Dual-Wire Motor Durability Test Bench is a next-generation industrial-grade testing platform engineered for high-precision endurance evaluation of motors, engines, and powertrain components.
With its adaptive loading system, ISO-certified accuracy, and Industry 4.0 connectivity, it delivers unmatched reliability and flexibility for long-term durability, performance verification, and product development testing.
Engineered for advanced high-speed motor applications, this motor test bench is widely used in the testing of new energy vehicle drive motors, high-speed air compressor motors, and high-speed magnetic levitation motors. The installation platform can be tailored to the motor under test, with options for flange or base mounting, ensuring compatibility with various test setups.
Details
HCTE-MPTE-003 is a versatile engine testing system designed for detailed analysis of diesel, gasoline, and gas engines. Offering up to 110 kW of power handling and 175 N·m torque capacity, this engine test bench allows for comprehensive testing of engine parameters such as speed, torque, power output, and fuel efficiency. Widely used in vehicle manufacturing, marine engineering, and generator set development, this engine test bench ensures reliable performance evaluation and compliance testing requirements.
Details
The HC-JSJ-001 Reducer Test Bench is a high-precision dynamometer for evaluating reducers' performance. With 0.2% torque/speed accuracy and ISO 6336 compliance, it measures over 16 key parameters. Suitable for gear, worm, and planetary reducers, it features automated control and energy-saving technology, making it ideal for manufacturing, maintenance, and R&D testing.
Details
The test bench features a robust structure, flexible control software, and modular configuration, making it suitable for a wide range of motor types, including high-speed motors, traction motors, and industrial drives. Whether for academic research, product development, or compliance verification, this equipment offers the precision and stability required for modern motor testing.
Details
The high-speed and high-power motor test bench is a versatile testing system designed for various high-speed motor applications, including new energy vehicle drive motors, high-speed air compressor motors, and high-speed magnetic levitation motors.
Details
The MTP-002 is an industrial-grade durability test platform for high-voltage motors, aircraft engines, and automotive drive systems.It features a hysteresis brake and adaptive pneumatic grips to simulate dynamic loads up to 6000 rpm, supporting 50,000-hour accelerated life tests in compliance with ISO 1940-1.
